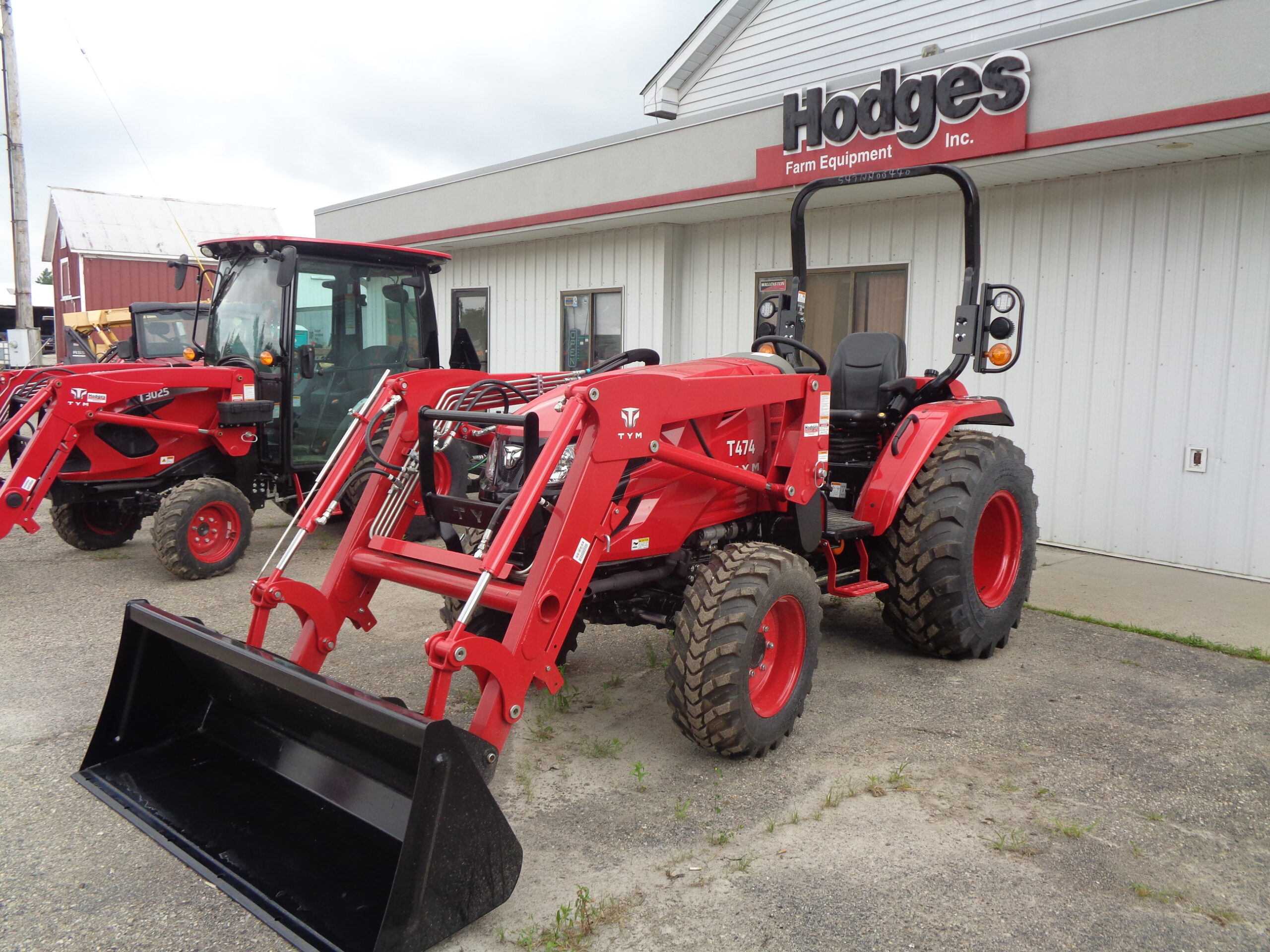

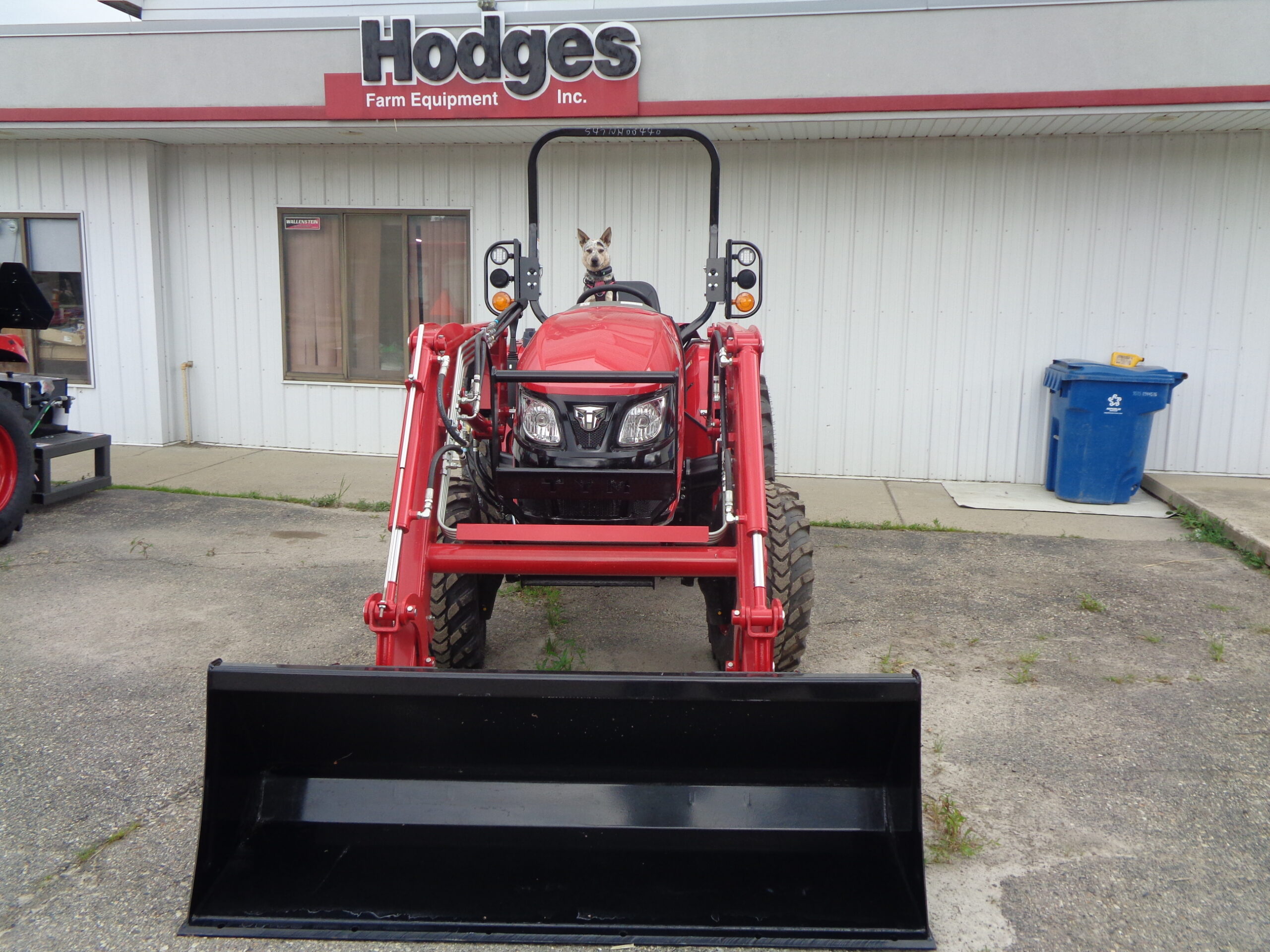

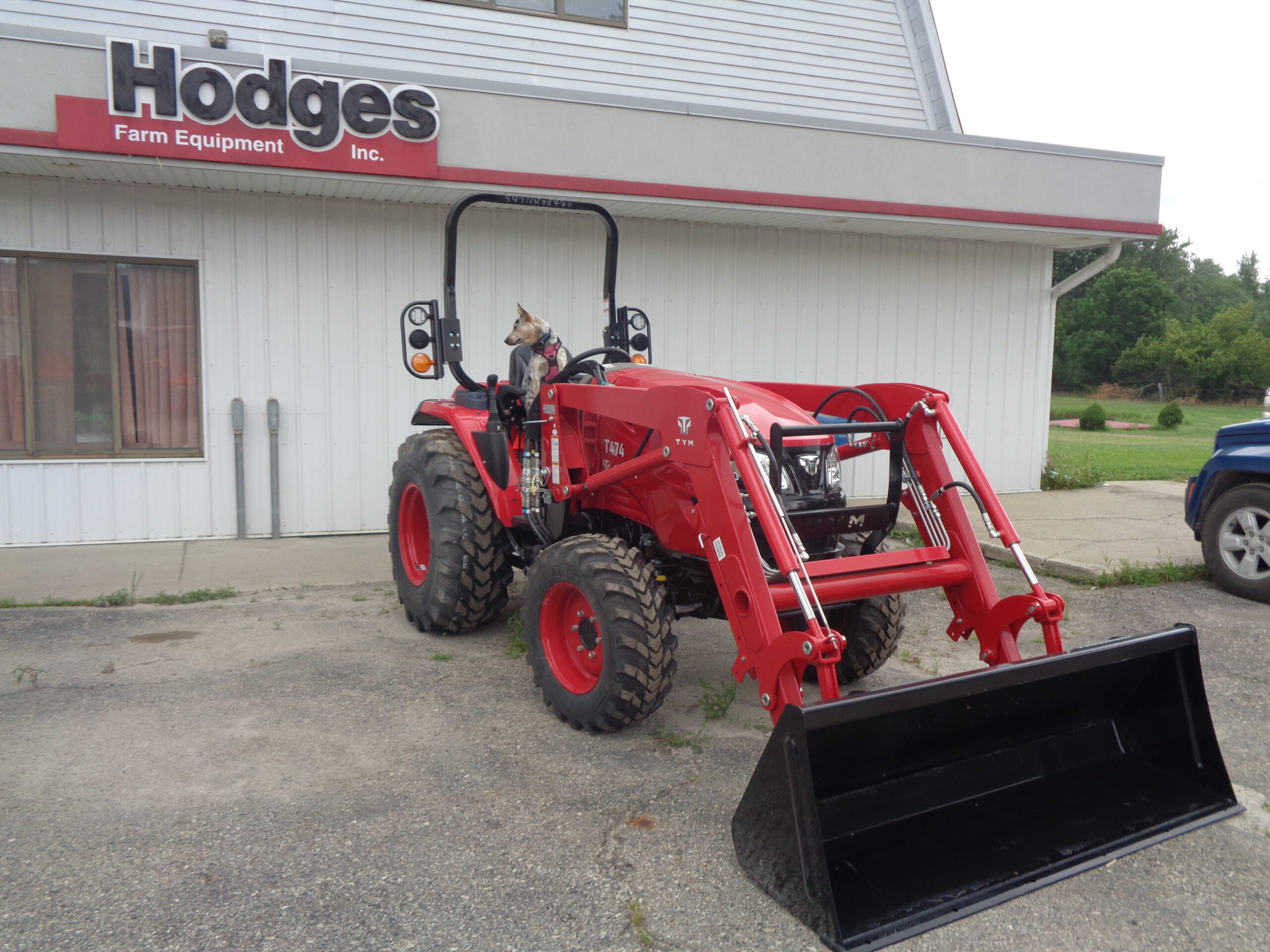

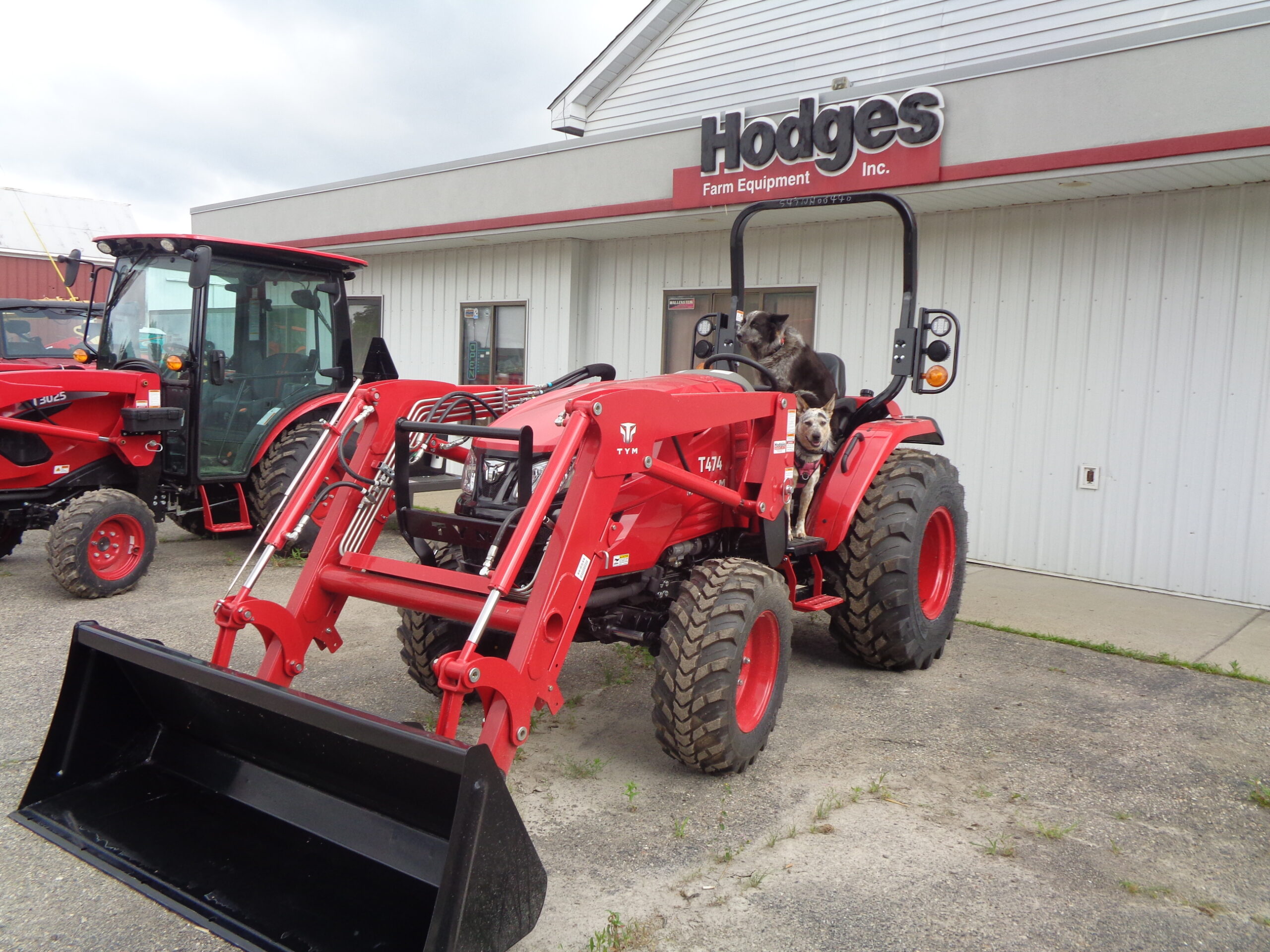

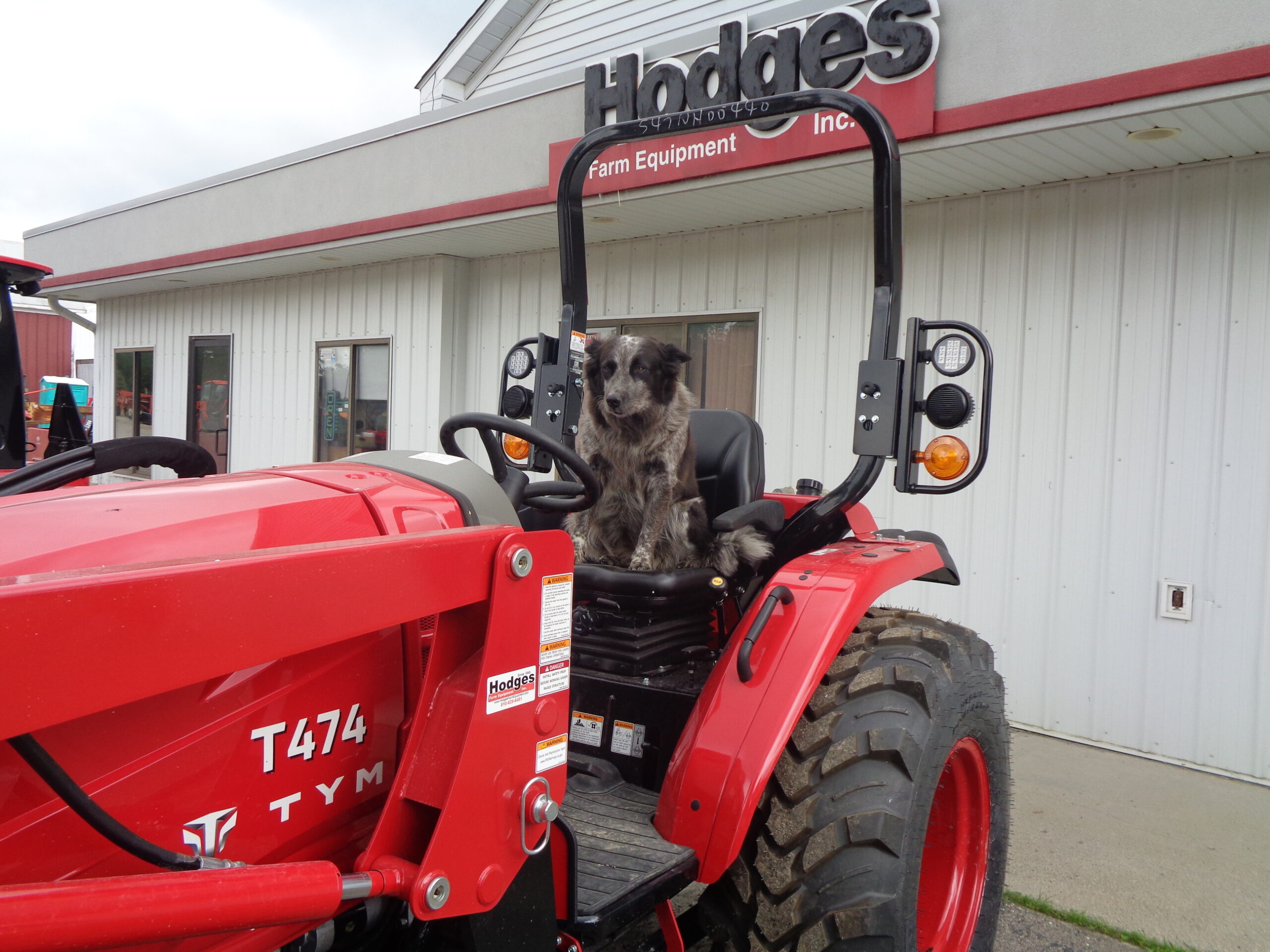

2026 TYM T474H Hydrostatic Tractor with TX47 Front Loader
2026 TYM T474H Hydrostatic Tractor with Front Loader
Vehicle Details
Year: 2026
Make: TYM
Model: T474H TL
Color: Red
Condition: New
Options Added
Hydrostatic Transmission
Front End Loader
R14 Tires
Warranty (see below)
Loader Specifications
Maximum Lift Height to Pivot Pin: 105.6”
Maximum Lift Height Under Lever Bucket: 96.5”
Clearance w/ Bucket Dumped: 80.4”
Reach at Maximum Lift Height: 16.5”
Maximum Dump Angle: 45 Degrees
Reach w/ Bucket on Ground: 69.2 Degrees
Maximum Rollback Angle: 38 Degrees
Digging Depth: 6.9”
Overall Height in Carry Position: 46.7”
Depth of Attachment: 19.4”
Height of attachment: 21.9”
Length of Attachment: 25.5”
Loader Total Weight: 1,021 lbs.
Weight of Boom & Quick Attach: 514 lbs.
Weight of Mounting Frame: 278 lbs.
Weight of Bucket: 229 lbs.
Lift Capacity to Maximum Height: 2,152 lbs
.Breakout Force at Ground Level: 3,198 lbs
Bucket Rollback Force at Ground Line: 3,012 lbs.
Relief Valve Setting: 2,347 psi.
Rated Flow: 7.7 GPM.
Lift Cylinder: 2.2” x 1.2”
Bucket Cylinder: 2” x 1.2”
Bucket Width: 66”
Boom Raising Time: 5.4 Sec.
Boom Lowering Time: 3.8 Sec.
Bucket Rollback Time: 2.5 Sec.
Bucket Dumping Time: 4.0 Sec.
Engine
TYM A2300N2
4-Cylinder Diesel
48.3hp @2600 RPM
PTO 32.3 HP
Powertrain & Specs
Power Steering w/ Dual-Gear Pump
Wet Disc Brakes
Selectable Four Wheel Drive

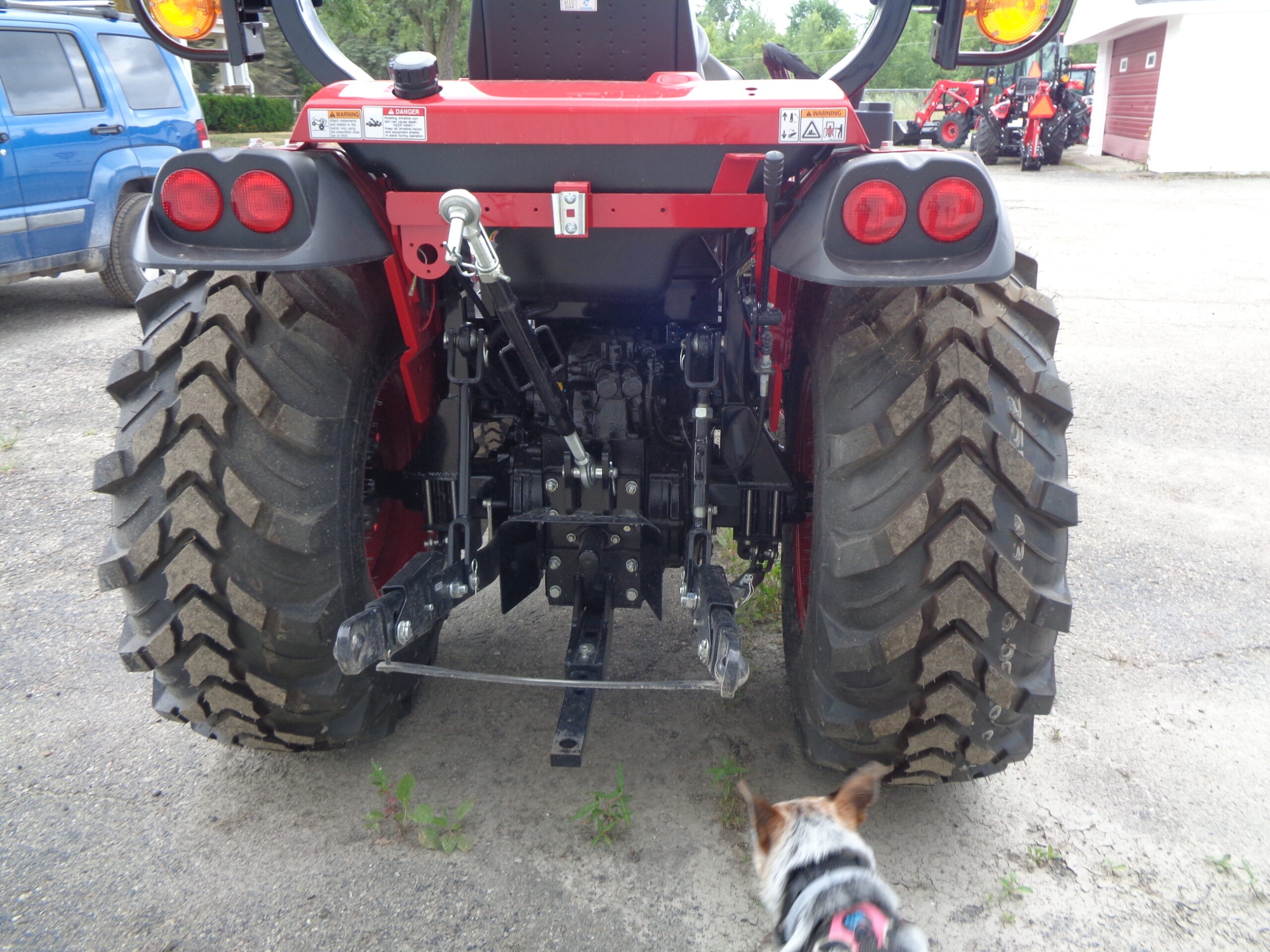

Category I Three Point Hitch, 2,646 lbs Capacity
540 RPM Independent PTO
9 Gallon Fuel Capacity
70A Alternator, 12V System
Weights
Tractor: 3,289lbs
Loader: 1,020.7lbs
Total Weight: 4,309.7lbs
Liquid Ballast (optional): 836lbs
Total Weight with Ballast: 5,145.7lbs
Our Price: $31,300
Monthly Payment: $423.00*
Cash Price: $29,050 includes $2,250 manufacturer rebate.
Warranty Information
Personal Use: 6-year warranty- The first two years is bumper to bumper on the tractor up to 2000 hours, whichever comes first. Loaders, backhoes and mowers have a 1 year limited warranty. The next 4 years will cover drivetrain parts and labor up to the 3000 hour mark.
Commercial Use: 3-year warranty- The first two years is bumper to bumper on the tractor up to 2000 hours, whichever comes first. Loaders, backhoes and mowers have a 1 year limited warranty. Year 3 will cover drivetrain parts and labor up to the 3000 hour mark.
Delivery is available upon request!
Hodges Farm Equipment, Inc,
1280 W. Ray Rd.
Fenton, MI 48430
(810) 629-6481
M-F: 9am – 5pm
Sat: 8am – 12pm
Stock NumberT474HTL-NH 0440
Keywords:Tractor | TYM | Loader | Backhoe | Hydrostatic | T474H| 474 | 24.7 HP | T474
*Payment is based on “our price” at 3.49% for 84/mo with no money down for qualified applicants. Prices may vary or fees may apply when financing through certain lenders. Price, information, and availability are subject to change at any time, therefore, information and specifications are not guaranteed.
